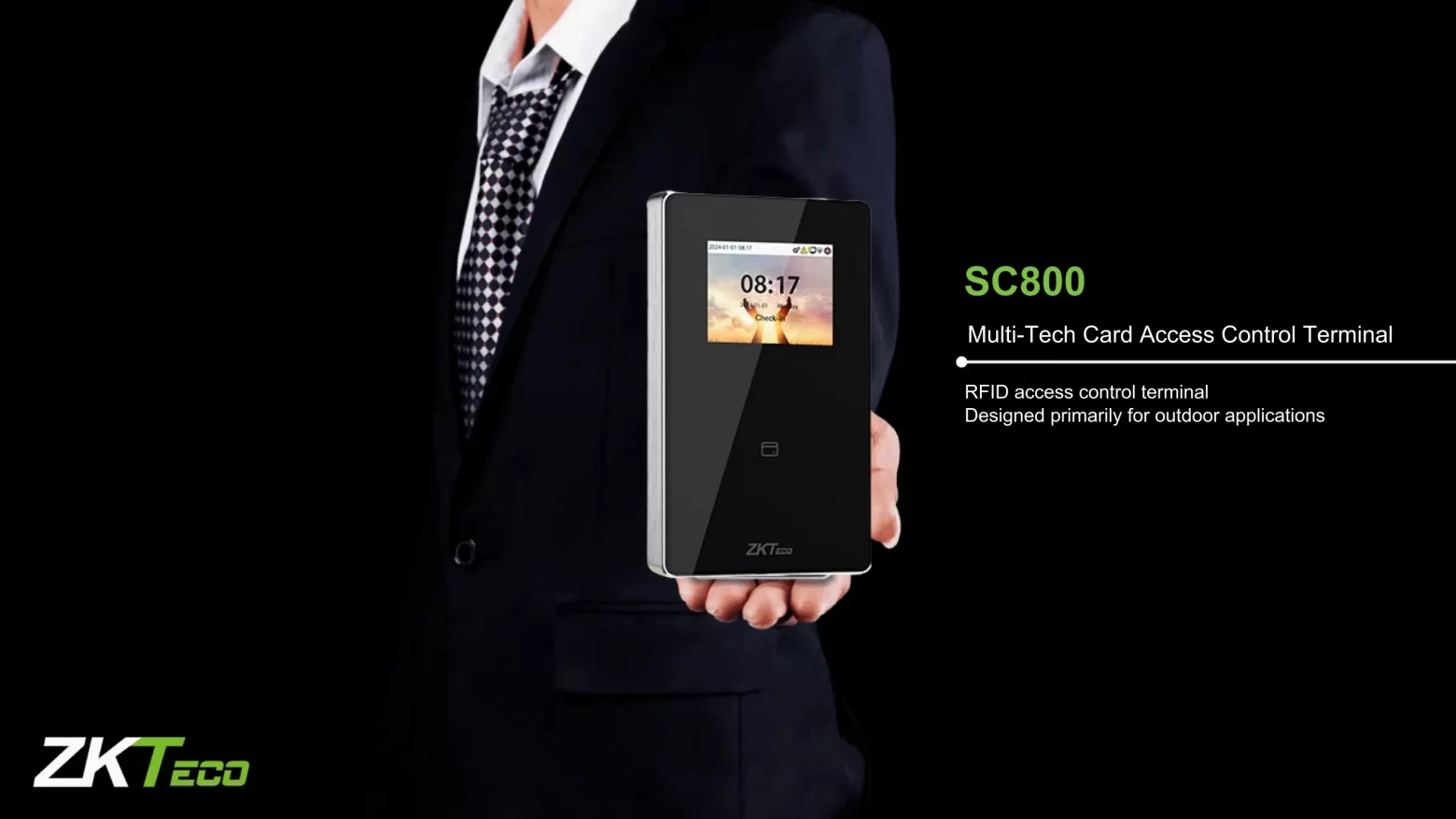

SC800 is a Linux-based and waterproof RFID Access Control terminal that is designed for outdoor application. This terminal adopts a metal midframe housing and a 2.5D tempered glass panel, supporting IP65 waterproof and IK04 vandal proof. Besides, SC800 has a 2.4 inch color screen and a hidden touch keypad to enhance the touchless unlocking experience.
SC800 offers the Multi-tech RFID module that supports 125kHz and 13.56MHz card, support HID Prox and HID iclass Multi-Tech RFID Module. In addition, SC800 supports Access Control push communication protocol and it is compatible with ZKBio CVAccess software. This terminal also includes a Wiegand Input port to connect the external proximity reader and can be act as controller’s external reader using a Wiegand Output port.
ZKTeco SC800 Device Features
- IP65 water and dust resistant, IK04 vandal proof.
- Supports multiple RFID modules and up to 100+ card types (including, ID / IC / Felica / Legic / DESfire EV1 / EV2 / HID Prox / HID iClass / etc.
- Support Access Control push conversion to Time Attendance push
- Communication: TCP/IP, Wi-FI (Optional), Wiegand in&out, RS485 (for RS485 readers), OSDP (Ver2.1.7), RS232 (for printer.
- Embedded web server for system configuration.
- Fully complied with ZKCSBL (ZKTeco Cyber Security Base Line). Standard to provide advance protection.
- Compatible with ZKBio CVAccess
Device Specifications
Display: 2.4 inch TFT LCD Color Screen
Operating System: Linux
Card Capacity: 50,000 (Optional: 100,000)
Logs Capacity: 200,000 (Optional: 1,000,000)
User Password: 6 Digits
RFID: Standard Module: ID Optional Multi-Tech Card Module:
- Module 1 Support: ID & IC & DESFire EV1/EV2;
- Module 2 Support: ID & IC & DESFire EV1/EV2 & FeliCa & Legic & HID Prox;
- Module 3 Support: ID & IC & DESFire EV1/EV2 & FeliCa & Legic & HID Prox & HID iCLASS;
Communication: TCP / IP, Wiegand, RS485 (for RS485 readers), OSDP (Ver2.1.7), RS232 (only for printer), Wi-Fi (Optional)
Wired Network: 10 / 100 Mbps, Auto MDI/MDI-X
Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Auxiliary Interface: 1 AUX input
Indication Light: Breathing light: White; Status light: Red / Green
Hardware: 1GHz Dual Core CPU, DDR2 64M, Flash 256M
Data Protection: AES-256 Encryption
Keypad: Hidden Touch Keypad
Wiegand Signal: Wiegand In / Out
Standard Functions:
- ID card, Web server, Automatic Status Switch, Self-Service Query;
- DST, 14 Digit User ID, Scheduled Bell, Anti-passback;
- HTTPS, Protocol conversion (AC push to TA push)
Optional Functions: Wi-Fi, Multi-tech Card Module, Printer
Power Supply: DC 12V 3A
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Humidity: 10% to 90% RH
Dimensions (L*W*D): 143 * 85 * 19.8 mm
Protocol: A & C Push (default) / T&A Push
Supported Software: ZKBio CVAccess
