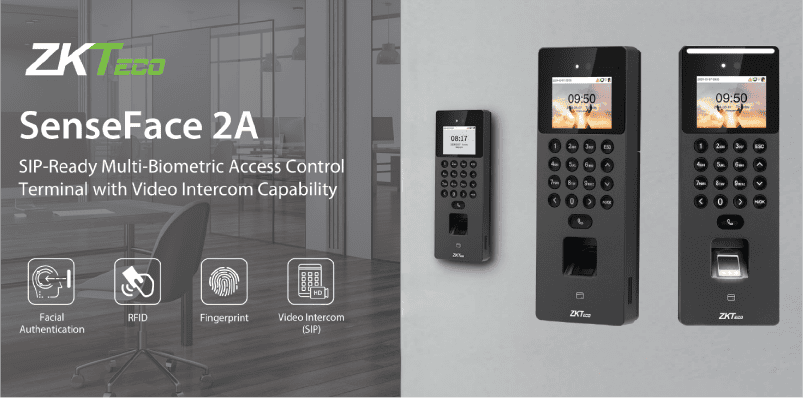

Multi-Biometric Access Control
SenseFace 2A adopts the latest intelligent engineering facial authentication. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and videos attack, which offering secure biometric authentication. SenseFace 2A is an access control terminal featuring a video intercom function and supports ONVIF protocol.
It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (version 2.0). Besides, SenseFace 2A supports multiple communication protocols.
The Device firmware has AC push and can convert to TA push to , it is compatible with various AC or TA softwares. Also, it can change to BEST protocol to link with ZKBio Zlink (AC module).
ZKTeco SenseFace 2A Access Control Features
Operation System: Linux
Multiple Authentication Methods: Facial / Fingerprint / RFID / Password
Visible Light Facial Authentication Technology and ZK Optical Fingerprint Verification
Available RFID Modules:125 kHz ID Card / 13.56 MHz IC Card
HD Video Door Phone Via SIP Protocol (Version 2.0). Compatible With ZKTeco SIP Video Intercom Indoor Monitor
VT07-B01and VT07-B01-W)
User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive.
Compatible with wireless doorbell (optional)
Simple access control functions (Electric Lock; Door Sensor; Exit Button)
Fingerpint Template Capacit: 3,000 (1:N) (Standard)
Face Template Capacity: 1,500 (1:N) (Standard)
Card Capacity: 3,000 (1:N) (Standard)
User Capacity: 3,000 (1:N) (Standard)
Transaction Capacity: 150,000 (1:N)
Display: 2.4″@ TFT Color LCD Screen (320*240)
Camera: WDR Binocular Camera @ 1MP
8 Digit User Length ( Max )
Operation Temperature: -5°C to 45°C
Power Supply: DC 12V 1.5A
Device Specifications
- Hardware
- CPU: Dual Core@1GHz
- RAM: 512MB; ROM: 8GB
- Speaker: 8ohm @1W
- Microphone: *1 (Sensitivity: -32 dB / Omni-directional / Signal-to-Noise Ratio: -32
- dB/Impedance: 2.2kΩ)
- Supplement Light: Yes
- Physical Keypad: 17 Keys
- Fingerprint Sensor: ZK Optical Sensor
- Authentication method
- Fingerprint / Face / Card / Password (Physical Keypad)
- Biometric Authentication Speed
- less than 0.5 sec (Fingerprint)
- less than 0.35 sec (Facial Authentication)
- Touchless Biometric Authentication Distance
- 30cm to 200cm (Facial Authentication)
- False Acceptance Rate (FAR) %
- FAR ≤ 0.01% (Visible Light Facial Authentication)
- FAR ≤ 0.0001% ( Fingerprint )
- Biometric Algorithm
- ZKFace V4.0
- ZKFingerprint V13.0 (Standard) /V10.0 (Optional)
- Card Type
- ID Card@125 kHz (Standard)
- IC Card@13.56 MHz (Optional)
- Communication
- TCP/IP*1
- Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
- USB: Type A (USB Drive Only )*1
- Electric Lock*1, Door Sensor*1, Exit Button*1
- Standard Functions
- ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access
- Levels, Groups, Holidays, Record Query, Schedule Bell, Tamper Switch Alarm,
- Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0),
- ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push
- and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
- Optional Functions
- IC Card, Wi-Fi, Wireless Doorbell
- Optional Functions
- IC Card, Wi-Fi, Wireless Doorbell
- Operating Humidity
- 20% to 80% RH (Non-condensing)
- Dimensions
- 205.20 mm*74.19 mm*33.30 mm (L*W*H)
- Net Weight
- 0.258 Kg
- Supported Software
- Software: ZKBio CVAccess / ZKBioTime
- Mobile App.: ZKBio Zlink
- Cloud Service: ZKBio Zlink
- Installation
- Wall-mount (Compatible with Asian Gang Box / Single Gang Box)
- Certifications
- ISO14001, ISO9001,CE, FCC, RoHS
