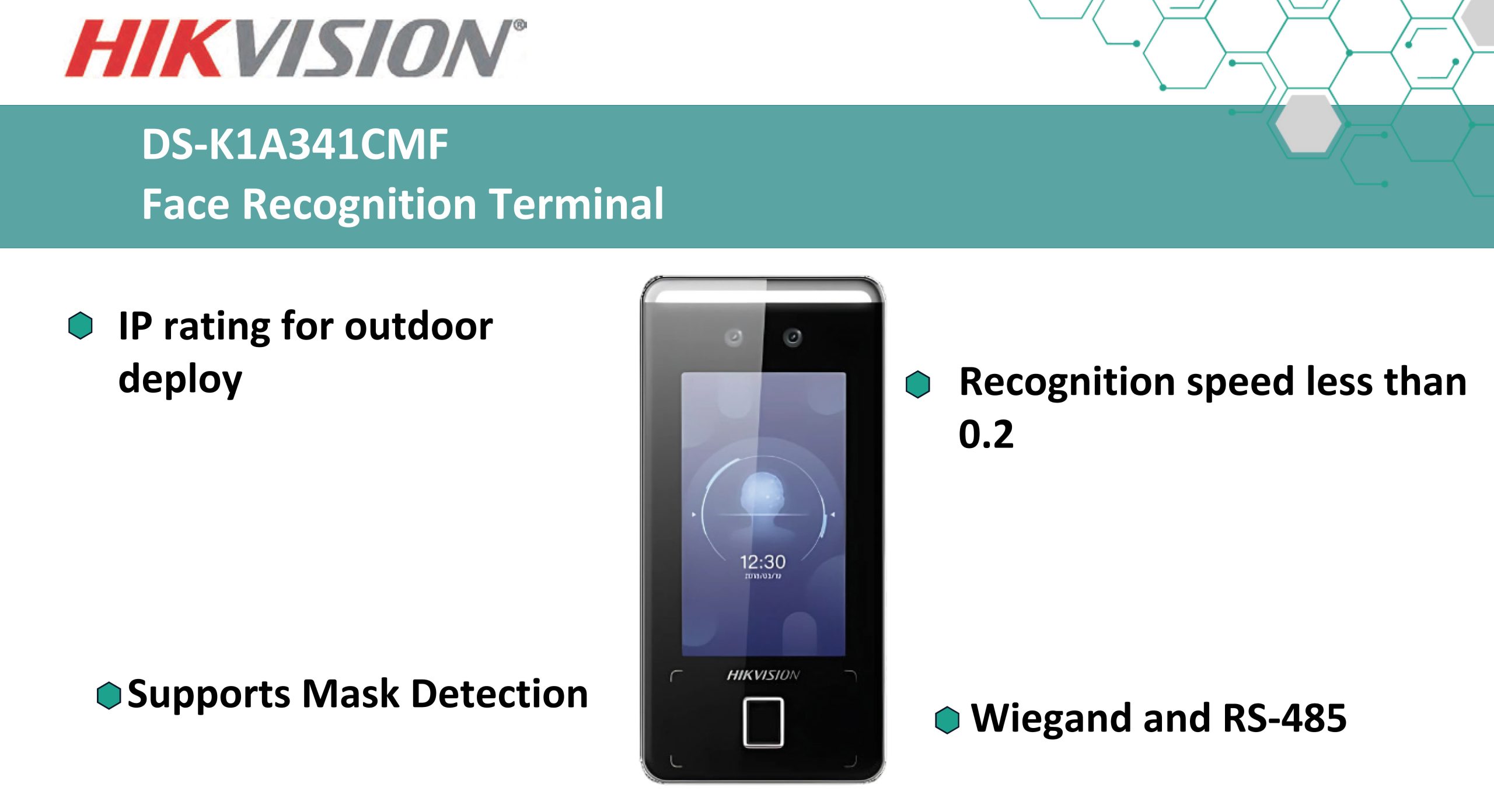

HikVision DS-K1T341CMF
The HikVision DS-K1T341CMF is an advanced face recognition terminal from Hikvision’s Value Series designed for secure and efficient access control. It features a 4.3-inch capacitive touch screen, a 2MP wide-angle dual-lens camera.
HikVision DS-K1T341CMF: Multi-Mode Access Control
The device supports multiple authentication methods including face, fingerprint, card, and PIN, with a capacity to store up to 3,000 faces, fingerprints, and cards each. Its face recognition speed is less than 0.2 seconds per user, with
HikVision DS-K1T341CMF: High-Accuracy Face & Fingerprint Access Control Unit
- Deep learning algorithm
- 4.3-inch capacitive touch screen, 2 MP wide-angel dual-lens
- 3,000 face capacity, 3,000 card capacity, 3,o00 fingerprint capacity and 150,000 event capacity
- Multiple authentication modes, including face, fingerprint and card, etc
- Face recognition duration < 0.2 s/User
- Supports mask wearing detection
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Two-way audio with client software, door station, indoor station, and main station
- Connects to secure door control unit vir RS-485 protocal to avoid the door opening when the termicanl is destroyed
Technical Specifications
Display
| Screen size | 4.3-inch |
|---|---|
| Operation method | Captacitive Touch Screen |
Video
| Lens | 2 | |
|---|---|---|
| Resolution | 2 MP (video stream: 720P) | |
| FOV | HFOV = 41.5°; VFOV = 75.5°; DFOV = 87° |
Audio
| Audio Quality | Noise suppression and echo cancellation |
|---|
Network
| Wired network | Support |
|---|
Interface
| Network interface | 1 RJ-45, 10/100 M self-adaptive | |
|---|---|---|
| Lock control | 1 | |
| Exit button | 1 | |
| Door contact input | 1 | |
| TAMPER | 1 | |
| RS-485 | 1,RS-485 (Half duplex,HIKVISION | |
| Wiegand | 1,Wiegand （Hik 26bit,Hik 34bit) | |
| USB | 1 |
Authentication
| Card type | M1 Card |
|---|
General
| Built-in access controller | Support | |
|---|---|---|
| Power supply | 12 VDC to 24 VDC, 2 A | |
| Power consumption | ≤ 10 W | |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) | |
| Protective level | IP65 | |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean |
